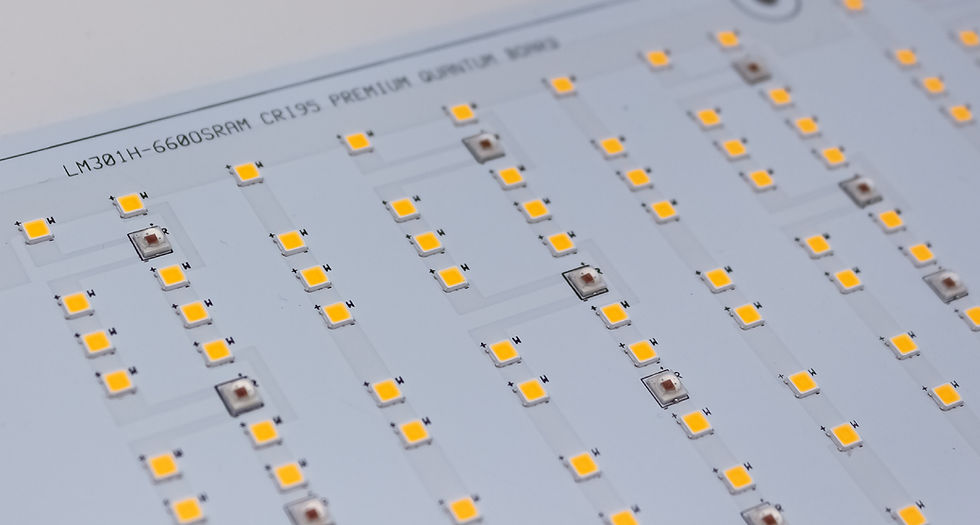

Premium QUANTUM BOARD 560W
This is a premium high-quality LED quantum board for growing plants. The spectra is specially designed to completely replace sunlight for plants. This board has been tested “in the field" for the specific plants that meet your needs. What made our LED board so good? 1) High-quality chips from Samsung and Osram 2) The design is designed for uniform photon emission to the surface of the plant, especially in a hidden growbox. 3) Concentrated high emission factor with high PPFD 3) The spectra include the entire range of the required wavelength - from 380 nm to 780 nm 4) High real CRI (Ra = 97 and Re = 96) with red color R9=94. (*) 5) Peak of red spectra at 660 nm 6) Pleasing to the eye, now no purple light! 7) Super high-efficiency LED chips - up to 220 lm/W
8) Power up to 560W
9) Warranty 5 years (**)
10) Original WAGO terminals for easy installation
11) Special design of the mounting holes to suite any heatsink
* May vary in the range of 7% depending on the modification requested by the client.
** In case of proper instalation and good heat decipation.
PRODUCT INFO
Model
GDQB280-420/60-308
GDQB560-420/60-309
Rated Power, W
280W
560W
PF
> 0.99
> 0.99
CRI
95
97
Voltage rate
DC 48V
DC 48V
Input Current
2.4-5.6A(max 8A)
2.4-10A(max 12A)
LEDs
420pcsx3030+60pcsx3535
420pcsx3030+60pcsx3535
LED chip
Samsung/Osram/LG
Samsung/Osram/LG
Light efficiency for white spectra (max)
220Lm/w
200Lm/w
CCT
2800K±100
2800K±100
Materials of PCB
Aluminum
Aluminum
Size
520x150x2mm
520x150x2mm
Net weight, kg
0.45
0.45
Gross weight, kg
0.6
0.6
Certification
compatable with CE, ROHS, EAC
compatable with CE, ROHS, EAC
Series
Premium
Premium
