Premium LED COB Tunable White
Key features: 1) High-quality LED chips 2) Uniform mixing of colors 3) Wide range of CCT 4) High CRI (Ra) 5) Suitable for any Tunable White drivers 6) Super high-efficiency LED chips - up to 220 lm/W*
* May vary in the range of 7% depending on the modification requested by the client.
** In case of proper instalation and good heat decipation.
PRODUCT INFO
Model
GD1311-12C3520509
GD1311-12C3527659
Rated Power, W
20W
20W
Max Power
24W
24W
CRI
90+
90+
Voltage rate
DC 36V
DC 36V
Input Current IF
0.28A*2
0.28A*2
LEDs
2x12
2x12
LED chip
12C35
12C35
Light efficiency for white spectra (max)
180 Lm/w
180Lm/w
CCT
1900K-5200K±100
2600K-6700K±100
Materials of board
Aluminum
Aluminum

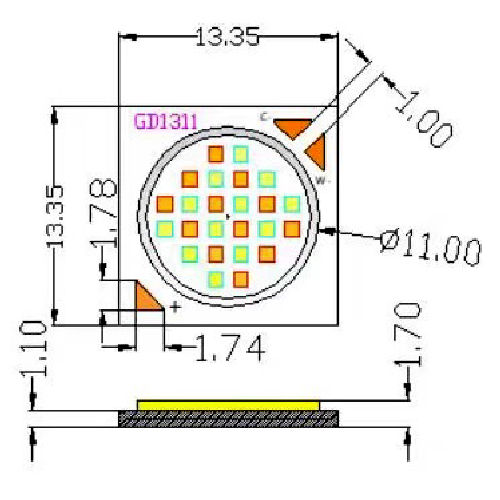

Size
13x13x1.7mm
13x13x1.7mm
Emitting area D
11mm
11mm
Number of channels
2
2
Certification
compatable with CE, ROHS, EAC
compatable with CE, ROHS, EAC
Series
Premium
Premium
